Model A Ford

Model B Zenith Carb

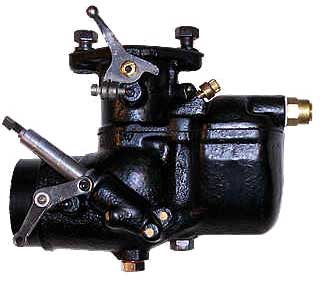

1932-34 Zenith B Carb

1932-34 Zenith B Carb

The Model B Zenith carburetor was fitted to American four cylinder Ford vehicles from 1932 to 1934. They are still popular today and are fitted to many Model A's as well as model B Fords.
We offer a line of spare parts for these carbs.

Quite a lot of Model A Fords have the Model B engine fitted to them. There are two things to do to check this. Firstly, look at the water pump at the front of the engine. If the water pump is held on with three bolts, you have a model B cylinder head. Secondly, if there is a fuel pump boss on the front right of the engine block (this may have a blanking plate on it) you have a model B engine.

Most Model A Fords that have a Model B engine, are still using the normal Model A carb, but it is worth identifying the carb first, before ordering the wrong parts. A quick look at the fuel inlet pipe gived it away. The model B carb has the fuel outlet pointing towards the radiator. The model A Zenith, has the outlet pointing to the side of the car.

1928-31 Model B Zenith Adapter Kit A-9510-K

1928-31 Model B Zenith Adapter Kit A-9510-K

Model B Zenith Adapter Kit 1928-31.

Kit gives you all you need to install the 1932-34 'B' carb on your model A. Gasket, special machined bolts, and fittings.

Made in USA

Availability:  1 In Stock!


Price: £55.00  (£66.00 Incl. vat)

1932-34 Carb Choke Plate B-9549

1932-34 Carb Choke Plate B-9549

Carb Choke Plate for the 1932-34 Model B Zenith carb.

This is a cadmium plated stamped steel choke plate.

Availability:  10 In Stock!


Price: £14.00  (£16.80 Incl. vat)

1932-34 Zenith Carb Throttle Plate  B-9585

1932-34 Zenith Carb Throttle Plate B-9585

Throttle plate for the 1932-34 model B Zenith carb.

Made of brass as original with correct angles on edges.

Availability:  4 In Stock!


Price: £12.50  (£15.00 Incl. vat)

1932-34 Zenith Carb Passage Plug Set B-9576

1932-34 Zenith Carb Passage Plug Set B-9576

Zenith Carb Passage Plugs for the model B carb.

These brass plugs get drilled out when you go to clean the internal passages in the Zenith carb. Made in USA.

Availability:  1 In Stock!


Price: £17.00  (£20.40 Incl. vat)

1932-34 Carb Adjusting Needle B-9525

1932-34 Carb Adjusting Needle B-9525

Zenith Carb Adjustment Needle on the 1932-34
model B carb.

This is the brass adjustment needle that is controlled by your choke rod.

Availability:  16 In Stock!


Price: £13.00  (£15.60 Incl. vat)

1932-34 Zenith Carb Main Jet B-9534

1932-34 Zenith Carb Main Jet B-9534

Main Jet for the model B Zenith carb.

Availability:  3 In Stock!


Price: £20.00  (£24.00 Incl. vat)

1932-34 Zenith Carb Power Jet B-9534-P

1932-34 Zenith Carb Power Jet B-9534-P

Power Jet for the model B Zenith carb.

Made in USA.

Availability:  3 In Stock!


Price: £12.00  (£14.40 Incl. vat)

1932-34 Zenith Carb Cap Jet B-9538

1932-34 Zenith Carb Cap Jet B-9538

Cap Jet for the 1932-34 model B Zenith carb.

Availability:  2 In Stock!


Price: £23.00  (£27.60 Incl. vat)

1932-34 Zenith Carb Idle Jet B-9542

1932-34 Zenith Carb Idle Jet B-9542

Idle Jet for the model B Zenith carb.

Availability:  3 In Stock!


Price: £25.00  (£30.00 Incl. vat)

1932-34 Zenith Carb Float Hinge Pin B-9558

1932-34 Zenith Carb Float Hinge Pin B-9558

Carb Float Hinge Pin for the model B Zenith carb.

Availability:  4 In Stock!


Price: £3.50  (£4.20 Incl. vat)

1932-34 Carb Mounting Gasket  B-9447

1932-34 Carb Mounting Gasket B-9447

Carb mounting gasket for the 1932-34 Model B carb.

Goes between the carburetor & the intake manifold.

Made in USA.

Availability:  6 In Stock!


Price: £2.00  (£2.40 Incl. vat)

1932-34 Carb Mounting Gasket  B-9447-C

1932-34 Carb Mounting Gasket B-9447-C

Copper carb mounting gasket as originally used, for the 1932-34 Model B carb.

Goes between the carburetor & the intake manifold.

Made in USA.

Availability:  4 In Stock!


Price: £9.50  (£11.40 Incl. vat)

1932-34 Model B Carb Basic Rebuild Kit  B-9595

1932-34 Model B Carb Basic Rebuild Kit B-9595

1932 Model 'B' Carb Kit.

All the basic parts for rebuilding an original cast iron zenith model B carburetor.

(Float valve not included).

Availability:  5 In Stock!


Price: £125.00  (£150.00 Incl. vat)

1932 Model B Carb Gasket Set  A-9502-B

1932 Model B Carb Gasket Set A-9502-B

Model 'B' Carb Gasket Set.

If your carb has the later 1932 style carb, this is the gasket kit for that carb.

Made in USA

Availability:  3 In Stock!


Price: £5.00  (£6.00 Incl. vat)

1932-34 Adjustment Needle Housing B-9528

1932-34 Adjustment Needle Housing B-9528

This is the correct needle housing for the 1932-34 Model B carb. It is the press in style of needle housing.

Availability:  2 In Stock!


Price: £30.00  (£36.00 Incl. vat)

1932-34 Throttle Shaft B-9581

1932-34 Throttle Shaft B-9581

This is the brass throttle shaft only for the 1932-34 Zenith Carburetor's.

The end of this shaft is drilled and tapped for a screw to mount your original throttle arm to the shaft.

Made in USA.

Availability:  2 In Stock!


Price: £36.00  (£43.20 Incl. vat)

1932-34 Oversize Throttle Shaft B-9581-OS

1932-34 Oversize Throttle Shaft B-9581-OS

This is a new oversize version of the brass throttle shaft for the 1932-34 Zenith Carburetor's.

Same shaft as our B-9581 except it is .015" larger to accomodate wear in the the casting.

The end of this shaft is drilled and tapped for a screw to mount your original throttle arm to the shaft.

Made in USA.

Availability:  1 In Stock!


Price: £36.00  (£43.20 Incl. vat)

1932-34 Model B Zenith Carb Float Valve  B-9564

1932-34 Model B Zenith Carb Float Valve B-9564

Zenith needle/Seat for the 1932-34 model B Zenith Carb .

This is the valve that the float pushes against to cut the flow of gas.

Availability:  2 In Stock!


Price: £35.00  (£42.00 Incl. vat)

1932-34 Model B Carb Float B-9550

1932-34 Model B Carb Float B-9550

Model B Carb Float as used on 1932-34 Zenith carburetors.

These were known as the B-2 style carburetor float, the earlier style was more barrel shaped.

Availability: We can order this for you

Can be added to our next USA order! View Ordering Information


Price: £42.00  (£50.40 Incl. vat)

1932-34 Carb Venturi B-9586

1932-34 Carb Venturi B-9586

Carb Venturi for the Model B Carb. The 'single' style venturi for the model B Zenith carb.

This is a fully machined part so the inside diameter is smooth for proper air flow. Not a cheap die cast piece!

The best venturi on the market today.

Made in USA.

Availability:  2 In Stock!


Price: £16.00  (£19.20 Incl. vat)

1928-31 B Choke Adapter Kit B-9510-S

1928-31 B Choke Adapter Kit B-9510-S

Model B Choke Adapter Kit 1928-31.

Kit gives you larger bore mounting gasket and machined bolts that allow the carb to pivot. By pivoting the carburetor, the model A choke rod will align.

Made in USA.

Availability: We can order this for you

Can be added to our next USA order! View Ordering Information


Price: £30.00  (£36.00 Incl. vat)
